Electrical Wire Soft Silicone Insulator Stranded Hook-up

9.15$

Clear
SKU: N/A Categories: ,

Basic Information:

Model: UL3132-26AWG
Type: Stranded Wire
Insulator Material: Soft Rubber
Conductor Material: Tinned Copper
Conductor Specification: 7/0.15TS (include 7 copper wires with a diameter of 0.15mm)
Maximum Conductor Resistance: 151 ohm/km. (at 20 degree)
Rated Temperature: -60 to 150 Celsius
Rated Voltage: 300V
Colors: Black, White, Red, Green, Blue, Yellow
Application: Internal wiring in electric & electric equipment, toys, lighting fixtures, DIY
Certification: UL (E355578), RoHS, TS/16949

Include:100m / Roll
Packing: one Roll

Conductor:

Stranded Hook up Wire. Include 7 copper wires with a diameter of 0.15mm, it is very soft and easy to wrap and weld. The copper wire is made of 99.99999% pure copper. The surface is tinned to increase the strength of the copper wire and avoid oxidation and corrosion of the copper wire. Improve the stability of the copper wire. You can look at the cut surface of the wire and you can see the luster of the copper.

Insulation:

The insulation layer is made of anti-freeze fireproof silicone. Can withstand temperatures from minus 60 ° C to 150 ° C (minus 76 degrees Fahrenheit to 302 degrees Fahrenheit), advanced materials, can effectively avoid leakage, low temperature, high temperature, high pressure damage to the wire, and more importantly, avoid the resulting danger.

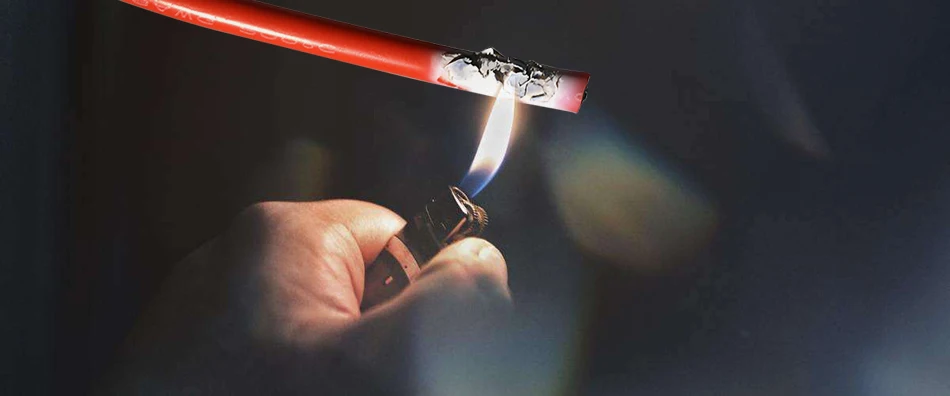

The insulating layer has fireproof properties. When it encounters high temperature, it will not burn, and the surface rubber will slowly turn into white ash, but it is not flammable.

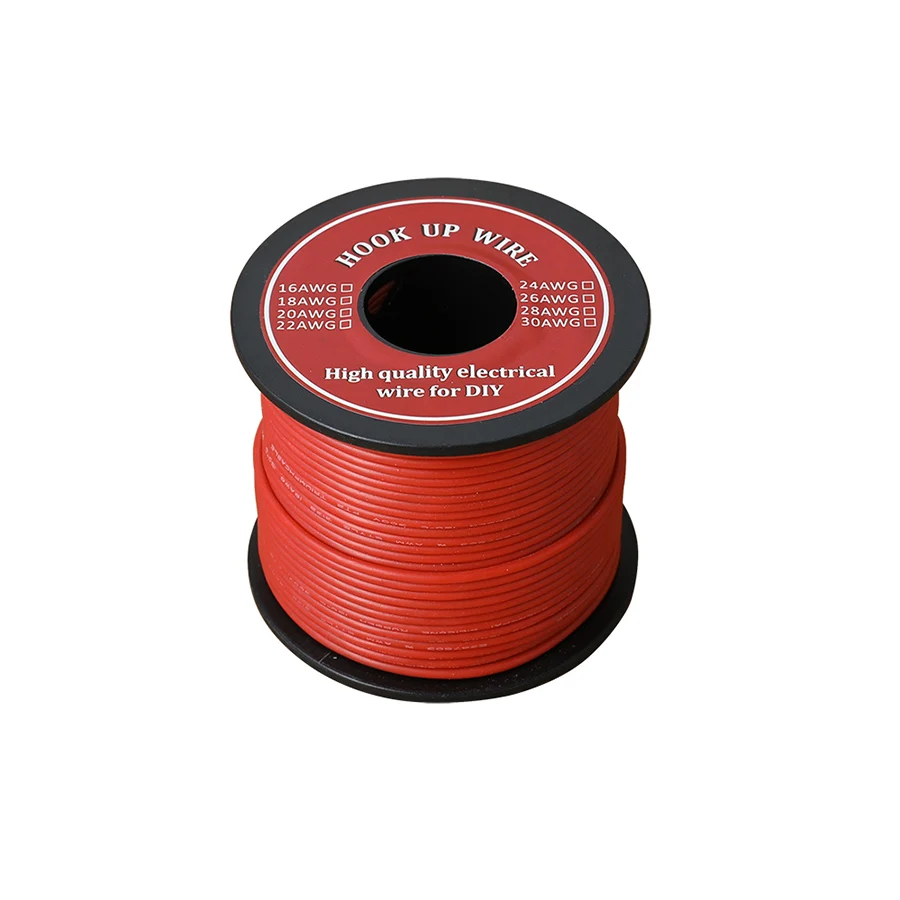

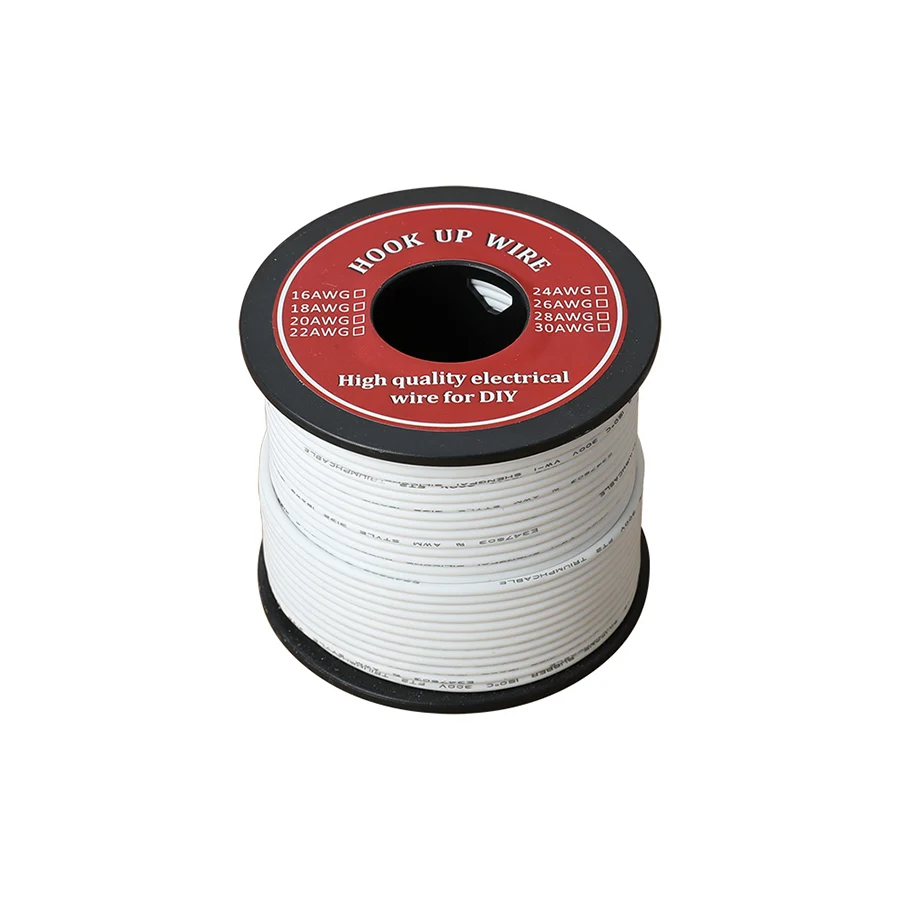

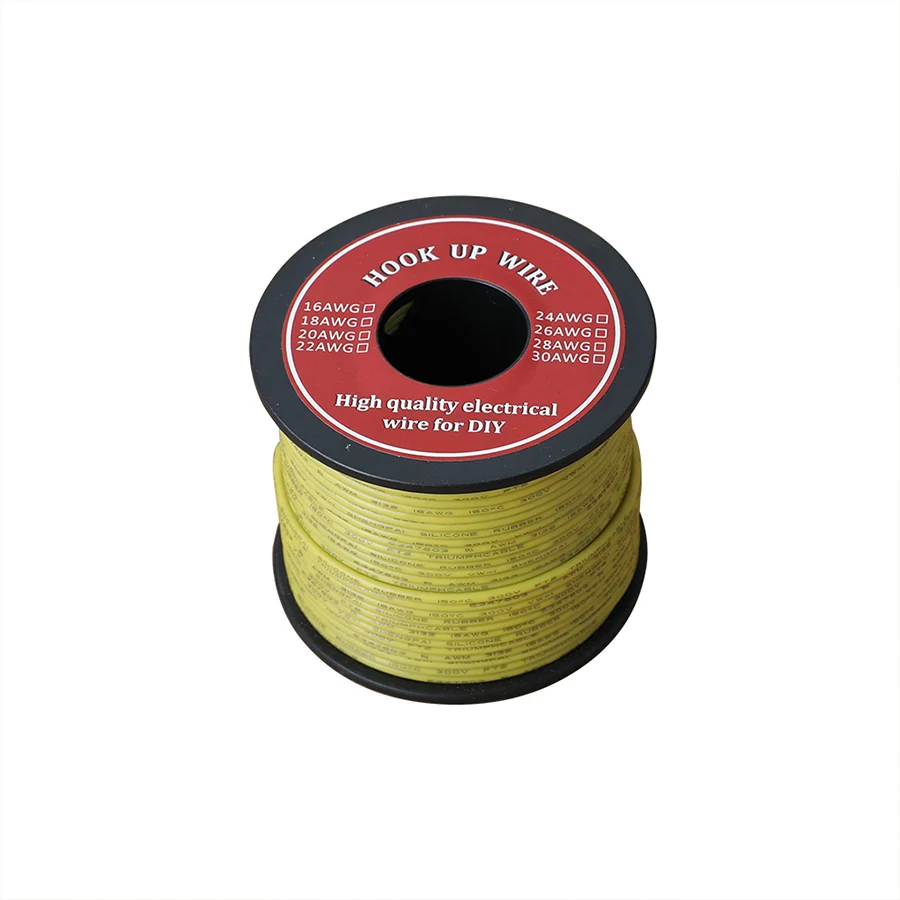

Roll:

The plastic shaft is wound for easy use.

FAQ

1. ASK:What’s mean UL?

ANSWER: UL indicates that the electrical wire meets the safety testing requirements of Underwriter Laboratories Inc.

2. ASK:What is the difference between different electronic wires?

ANSWER: The same series, such as UL3132-22AWG and UL3132-24AWG, have the same rated voltage and operating temperature, but due to different conductor specifications, the current can be different.
Different series, such as UL3132-22AWG and UL3239-22AWG, have different rated voltages and operating temperatures. Although, in most cases, the two types of wires can be used in common, sometimes there are cases where they are not universal.

3. ASK:How to know which wire should be choosed?

ANSWER: You need to consider these characteristics of the wire: operating temperature, rated voltage, current that can be withstood, and the softness of the wire. You can make a selection by referring to the wire spec sheet in the description.

4. ASK:What is the use of this wire?

ANSWER: It can be used for the following purposes:
Electrical internal wire: such as electric fan, rice cooker, earphone, circuit board, small motor, etc.
Lighting wire: such as LED lights, party lights string
Toy wire: such as DIY train, remote control aircraft
DIY wire: Various homemade circuit products

SPECIFICATIONS

  • Certification: UL
  • Origin: CN(Origin)
  • Insulation Material: Rubber
  • is_customized: Yes
  • Conductor Material: Copper
  • Model Number: UL3132-26AWG
  • Conductor Type: Stranded
  • Application: Hook-up Wire
  • Type: Insulated
  • Type: Stranded Wire
  • Rated voltage: 300V
  • Rated temperature: -60℃ to 150℃
  • Conductor material: Tinned copper
  • Conductor specification: 7/0.15TS (include 7 metal wires with a diameter of 0.15mm)
  • Insulator: Soft Rubber
  • Recommended current: Below 1.86A
  • Maximum Conductor Resistance: 151 ohm/km. (at 20 degree)
  • Color: Black / Red / White / Green / White / Yellow
